The Eloise
16'x24' Garage

The Eloise (16'x24' Garage)

$249.99
1 3
Includes a full digital plan set with a one-time build license. Editable AutoCAD (.dwg) files for engineers, builders, or custom edits. Includes Revit + 3D model files for advanced architectural workflows.
What’s Included:
  • Floor plan
  • Materials List

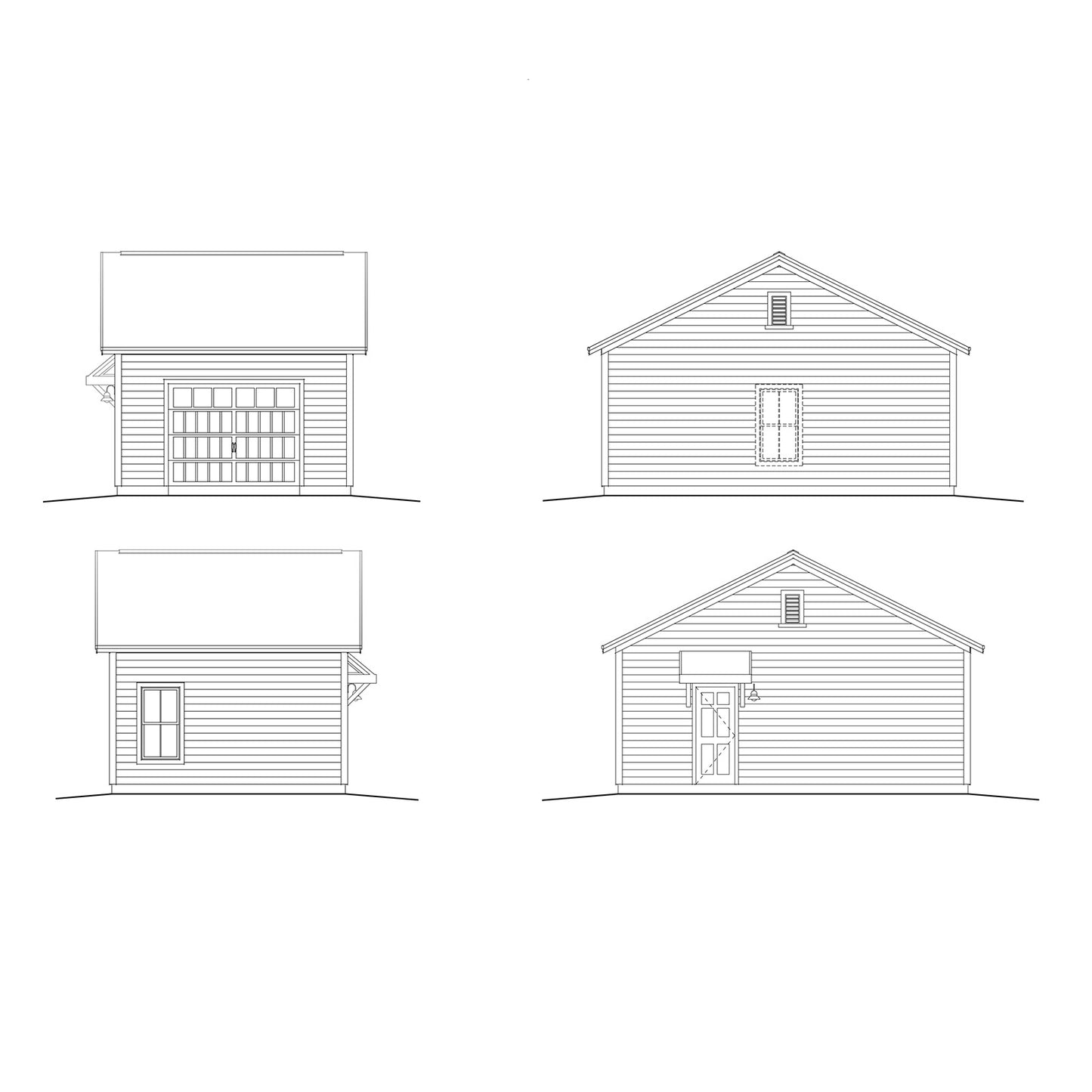

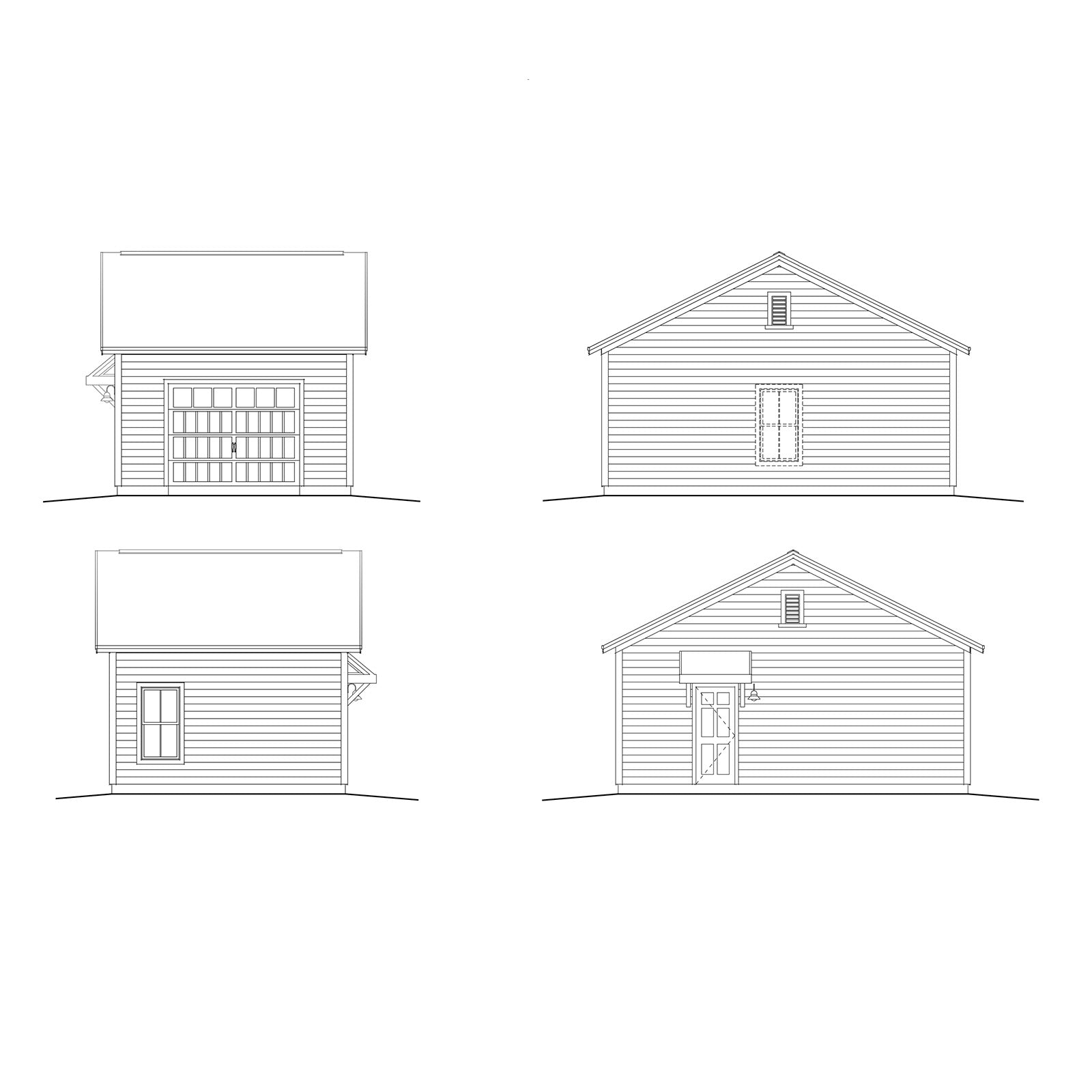

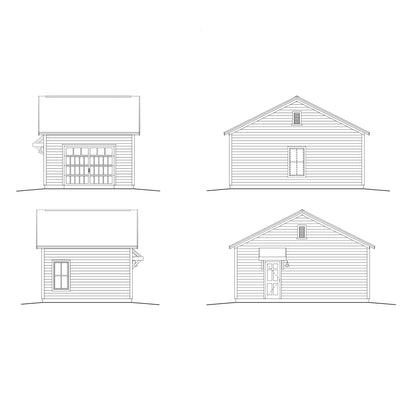

  • Exterior Elevations
  • Sections & Details
  • Electrical Layout
  • PDF and optional CAD Files
  • Roof Plan

All plans are drafted to IRC standards and are permit-ready.

Upgrades wall framing from 2x4 to 2x6 for strength and insulation. Free on RV and Boat garages. Flips the plan horizontally. Ideal for driveway or site layout needs. Mailed copy of the full plan set on 18×24 paper. Includes 5 printed sets, shipped to your address and ready for submittal or builder use.

Add your request below. Customizations typically add 1-2 business days to delivery.

No need to decide right now - you can request a free small change after purchase as well.

Need something more complex?
Request a full custom plan here.

  • Permit‑ready plans designed to IRC standards
  • Instantly delivered PDF so you can start today
  • Free minor revisions if your permit office requests adjustments

  • Includes both monolithic slab and CMU stem wall foundation options.
  • Prepared to current IRC standards. Some jurisdictions may require stamped engineering by others.
  • Free minor drafting revisions are included if your permit office requests adjustments (does not include engineering or stamped drawings).
  • Includes a one-time personal use license. Contact us for multi-use or commercial rights.
  • All sales are final once digital files are sent. Please reach out with any questions before purchasing. We're happy to help.


Why Builders Choose Us

✔ Clear, detailed plans crafted to make permits less of a headache
✔ Easy-to-follow drawings that keep crews moving on the job site
✔ Professional quality that fits real budgets—without cutting corners
Learn More
View full details

PLAN AT A GLANCE

1

Vehicle Capacity ? Number of vehicles the layout is designed to fit.
Dimensions Icon

16'-0"x24'-0"

Dimensions ? Total garage footprint measured from exterior wall to exterior wall.
Ceiling Height Icon

9'-0"

Ceiling Height ? Interior height from the finished slab to the bottom of ceiling framing.
Roof Pitch Icon

6/12

Roof Pitch ? Ratio of roof rise over run. Example: 6/12 means 6 inches of rise for every 12 inches of run.
Door Size Icon

9'x7'

Door Size ? Garage door width by height, measured in feet.
Overall Height Icon

16'-0"

Overall Height ? Distance from the finished slab to the peak of the roof ridge.
Roof Type Icon

Truss

Roof Type ? Type of roof framing included with this plan, such as truss or rafter system.
Area Icon

384 Sq. Ft.

Area ? Total interior square footage of the garage floor.

Each Plan Includes 5 Interchangeable Garage Door Styles

Raised Panel
Raised Panel
Long Raised Panel
Long Raised Panel
Flush / Modern
Flush / Modern
Board and Batten
Board and Batten
Carriage
Carriage

Actual style selected with builder; availability may vary.

The Eloise is a compact, stylish one-car garage that fits naturally into any setting.
Its clean roofline, traditional siding, and modest footprint make it ideal for single-vehicle storage, a backyard workshop, or a home gym. Every plan includes multiple door styles and layout details to help you build with confidence.

Standard layout highlights:
• 16' wide × 24' deep footprint
• 9' ceiling height
• One-car capacity with 9'x7' garage door
• Two louvered gable vents
• Optional shed roof over entry door

Need adjustments? Use the “Need a small change?” dropdown above to request edits to ceiling height, materials, or layout before purchase.
