The Bridgewater
16'x40'
Garage
The Bridgewater (16'x40' Garage)
30-Day Money-Back Guarantee
If your permit office rejects our plans, we'll revise for free or provide a full refund. Build with confidence.
- Permit‑ready plans designed to IRC standards
- Instantly delivered PDF so you can start today
- Free minor revisions if your permit office requests adjustments
- Includes both monolithic slab and CMU stem wall foundation options.
- Prepared to current IRC standards. Some jurisdictions may require stamped engineering by others.
- Free minor drafting revisions are included if your permit office requests adjustments (does not include engineering or stamped drawings).
- Includes a one-time personal use license. Contact us for multi-use or commercial rights.
- All sales are final once digital files are sent. Please reach out with any questions before purchasing. We're happy to help.
Why Builders Choose Us
PLAN AT A GLANCE
UP TO 37'-0"
Maximum Length Boat or RV Maximum length vehicle that can fit inside the garage.
16'-0"x40'-0"
Dimensions Total garage footprint measured from exterior wall to exterior wall.
16'-4 1/2"
Ceiling Height Designed to fit a 14′‑0″ tall garage door with the minimum required clearance for door tracks and structural framing, resulting in a total ceiling height of 16′‑4½″
5/12
Roof Pitch Ratio of roof rise over run. Example: 6/12 means 6 inches of rise for every 12 inches of run.
12'x14'
Door Size Garage door width by height, measured in feet.
25'-6 1/2"
Overall Height Distance from the finished slab to the peak of the roof ridge.
Truss
Roof Type Type of roof framing included with this plan, such as truss or rafter system.
640 Sq. Ft.
Area Total interior square footage of the garage floor.

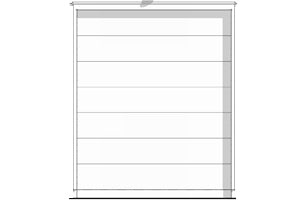

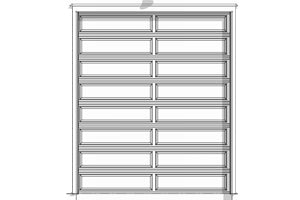

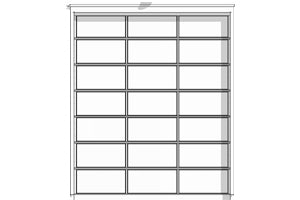

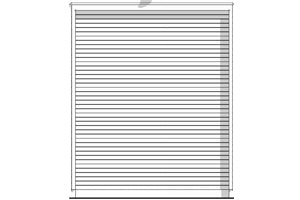

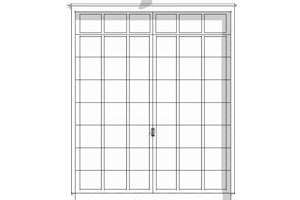

Each Plan Includes 5 Interchangeable RV/Boat Garage Door Styles
Actual style selected with builder; availability may vary.
The Bridgewater is a long-span, high-clearance garage built to handle serious storage needs.
Designed for boats, RVs, trailers, or lifted trucks, it pairs rugged utility with clean lines and a tall, upscale look. Board-and-batten siding and a standing seam metal roof create a distinctive modern profile, while optional brick detailing adds style and durability at the base.
Standard layout highlights:

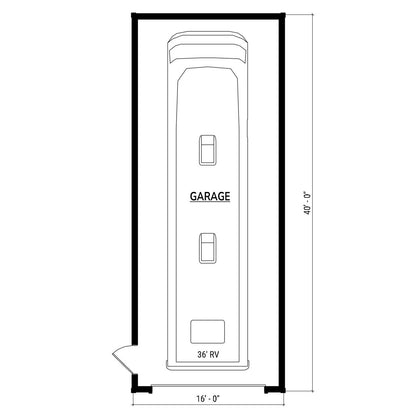

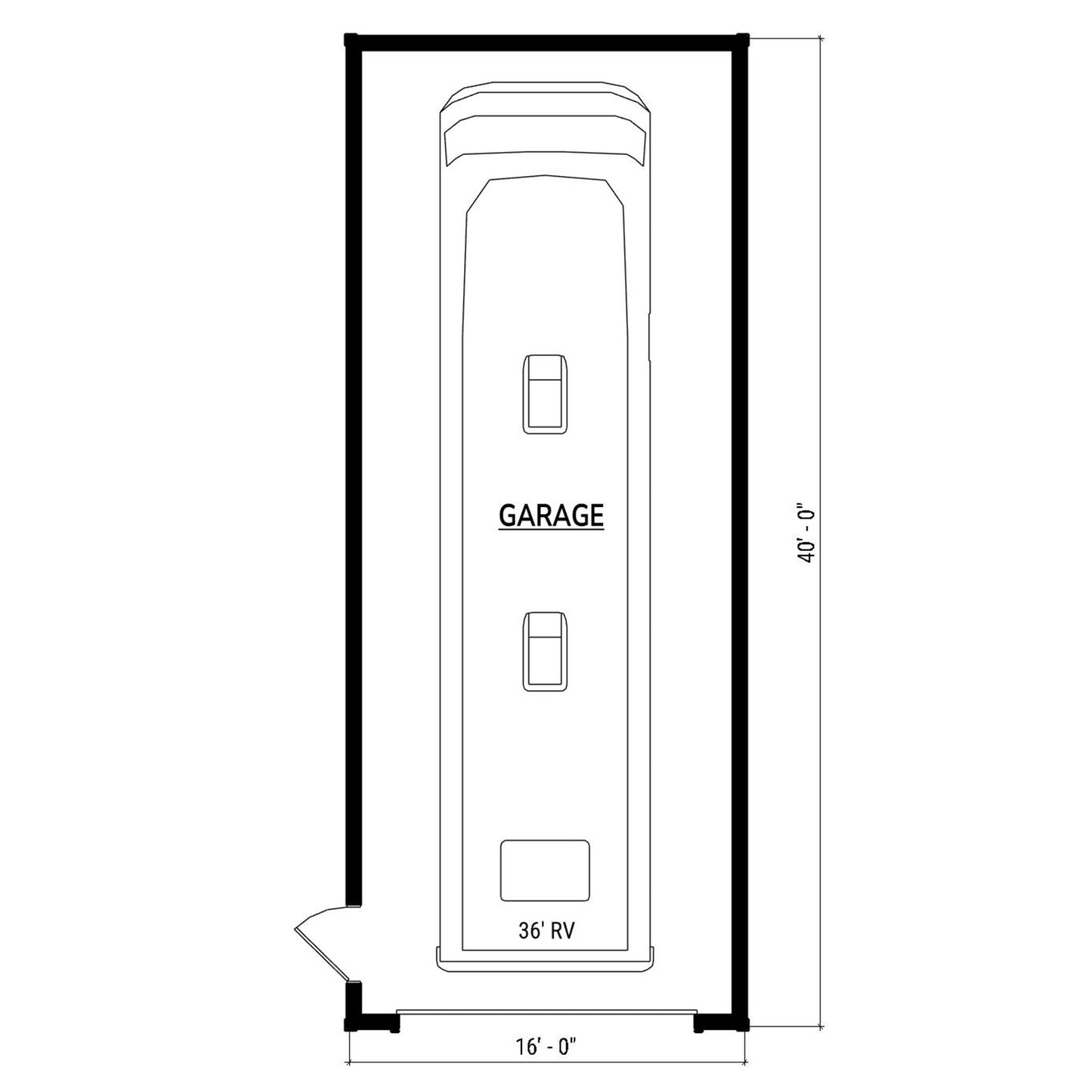

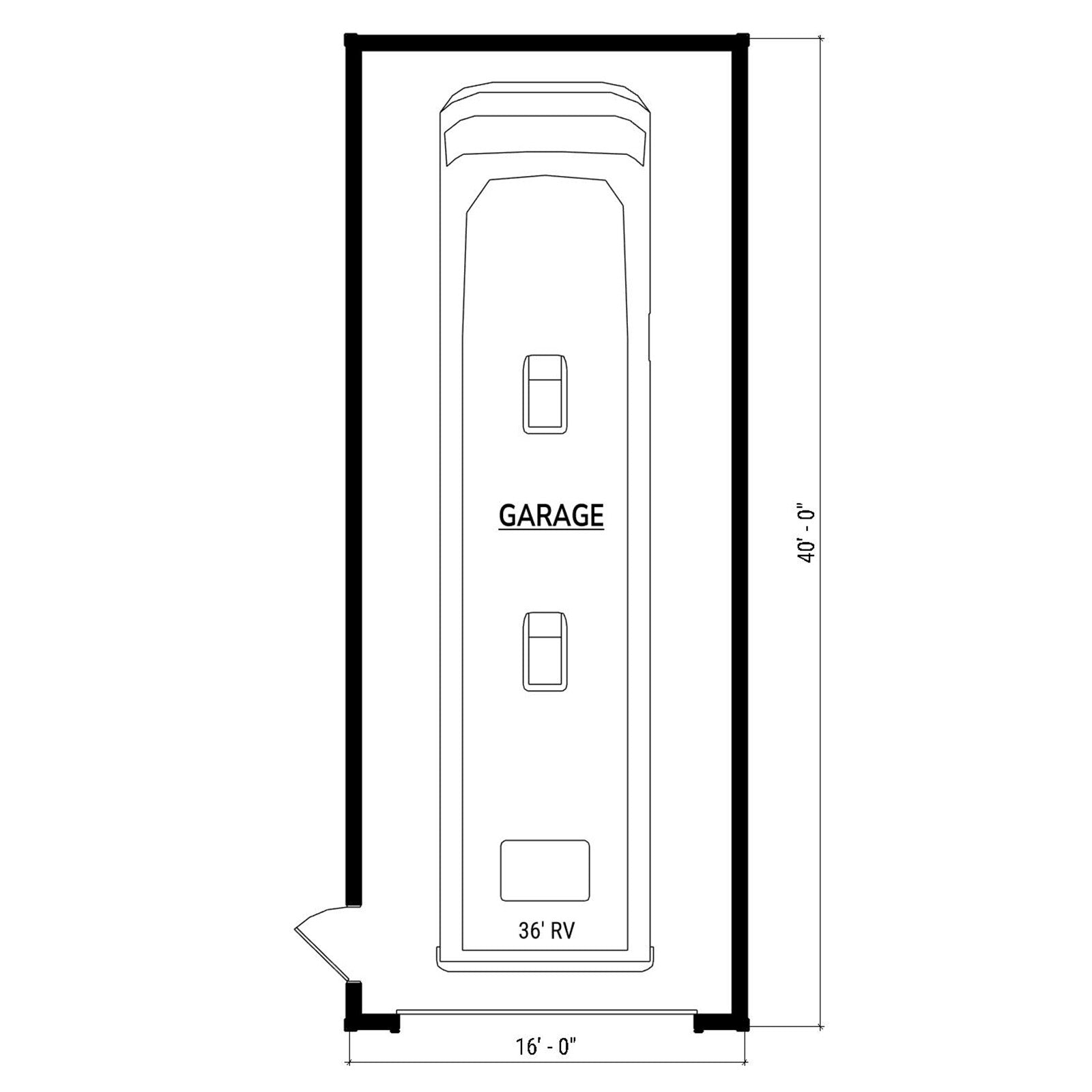

• 16' wide × 40' deep footprint
• 16'-4½" ceiling height
• Fits vehicles up to 13' tall and 37' long
• One 12'x14' overhead garage door
• Side entry door included
• Board-and-batten siding with standing seam metal roof
• Two gable-mounted louvered vents
• Optional brick water table
Need a tweak? Use the “Need a small change?” dropdown above to request layout edits, siding swaps, or other adjustments before purchase.
Engineering Required for Lateral Bracing:
This RV garage includes 16’ tall walls and large overhead door openings, which exceed the IRC’s prescriptive limits for lateral bracing. While the architectural plans are permit-ready, local building codes will require a licensed structural engineer to design and verify all bracing and hold-downs based on your site’s wind, seismic, and exposure category. These structural elements are not included in the plan set and must be completed locally.
🎨 Every Plan is Customizable
These plans are starting points. Want different dimensions? More windows? Different doors? We'll modify it for FREE.
No architect fees. No extra charges. Just tell us what you need at checkout.
Based on verified customer reviews
Free Customizations
Change sizes, doors, windows - no extra cost
20+ Years Experience
Professional drafting expertise
Permit-Ready Plans
IRC compliant & code-approved
Fast Delivery
Instant or 1-2 days with changes
