The Eliza
24'x24' Garage

The Eliza (24'x24' Garage)

$299.99
1 3
Includes a full digital plan set with a one-time build license. Editable AutoCAD (.dwg) files for engineers, builders, or custom edits. Includes Revit + 3D model files for advanced architectural workflows.
What’s Included:

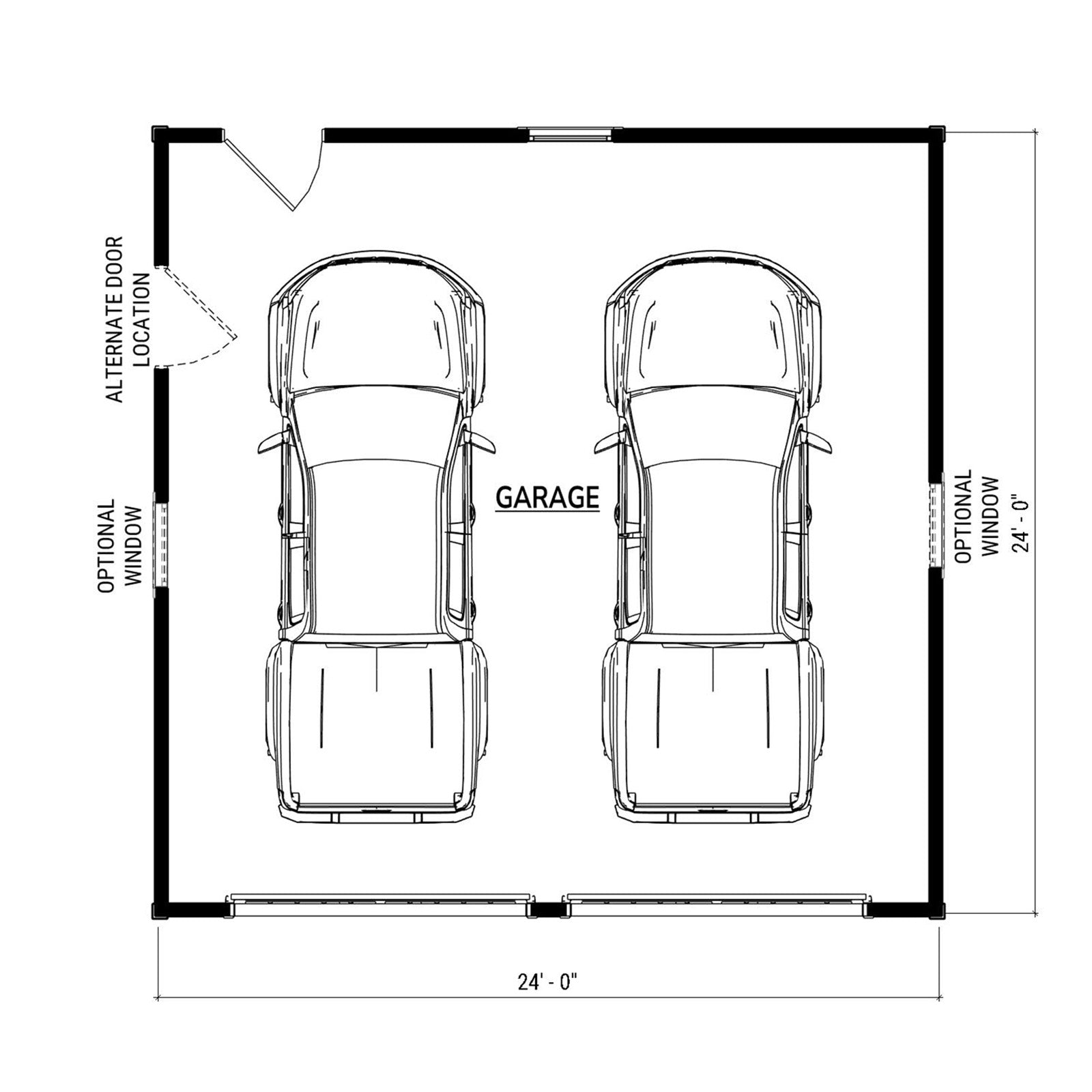

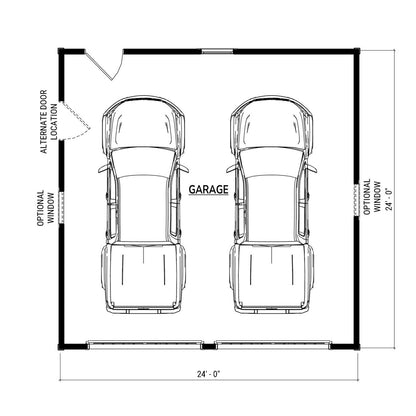

  • Floor plan
  • Materials List

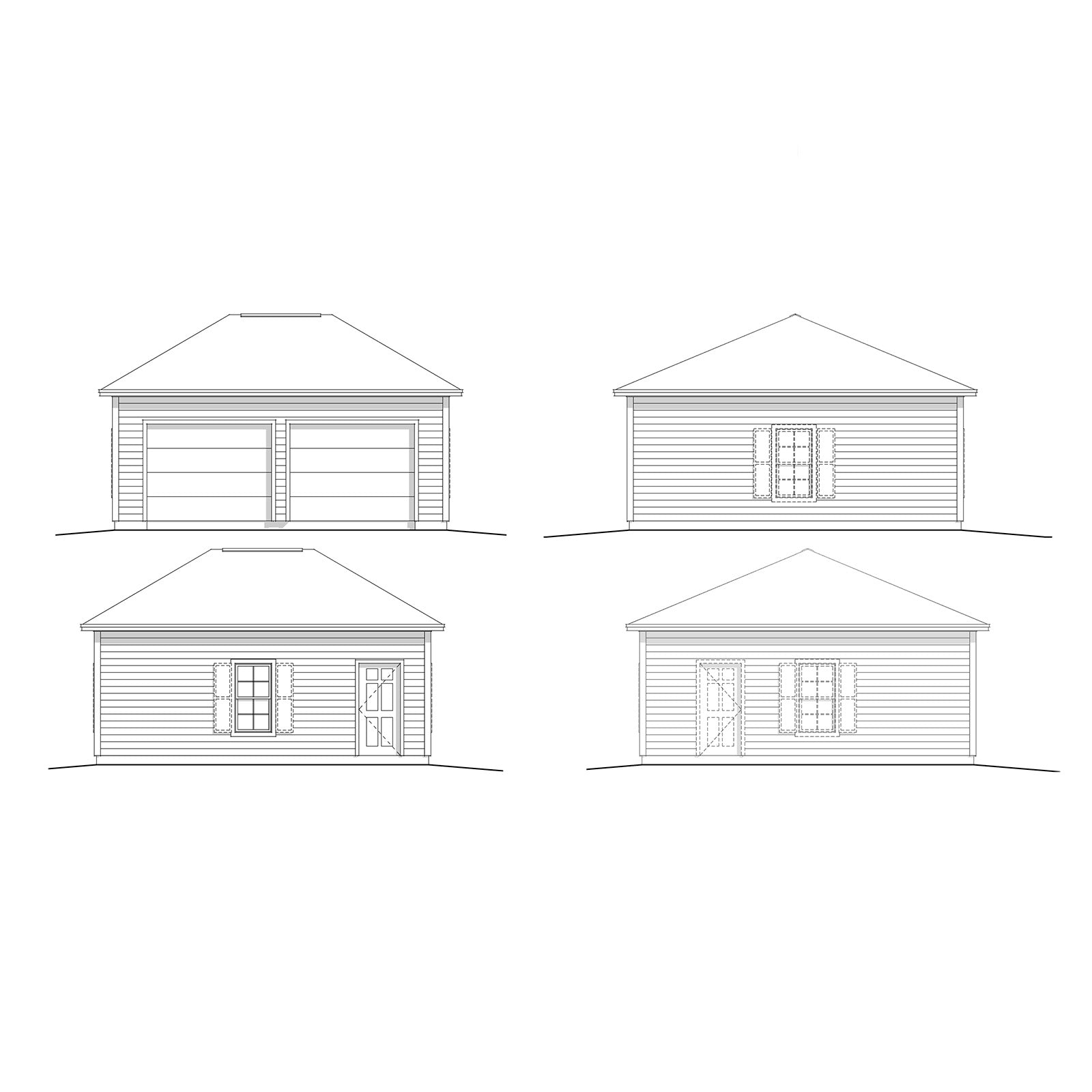

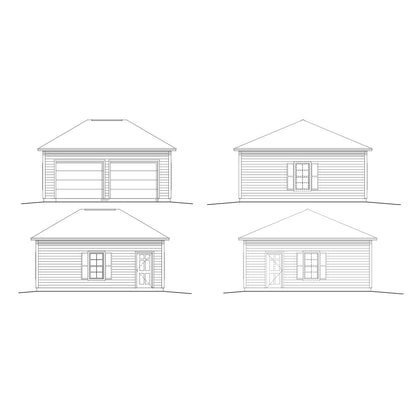

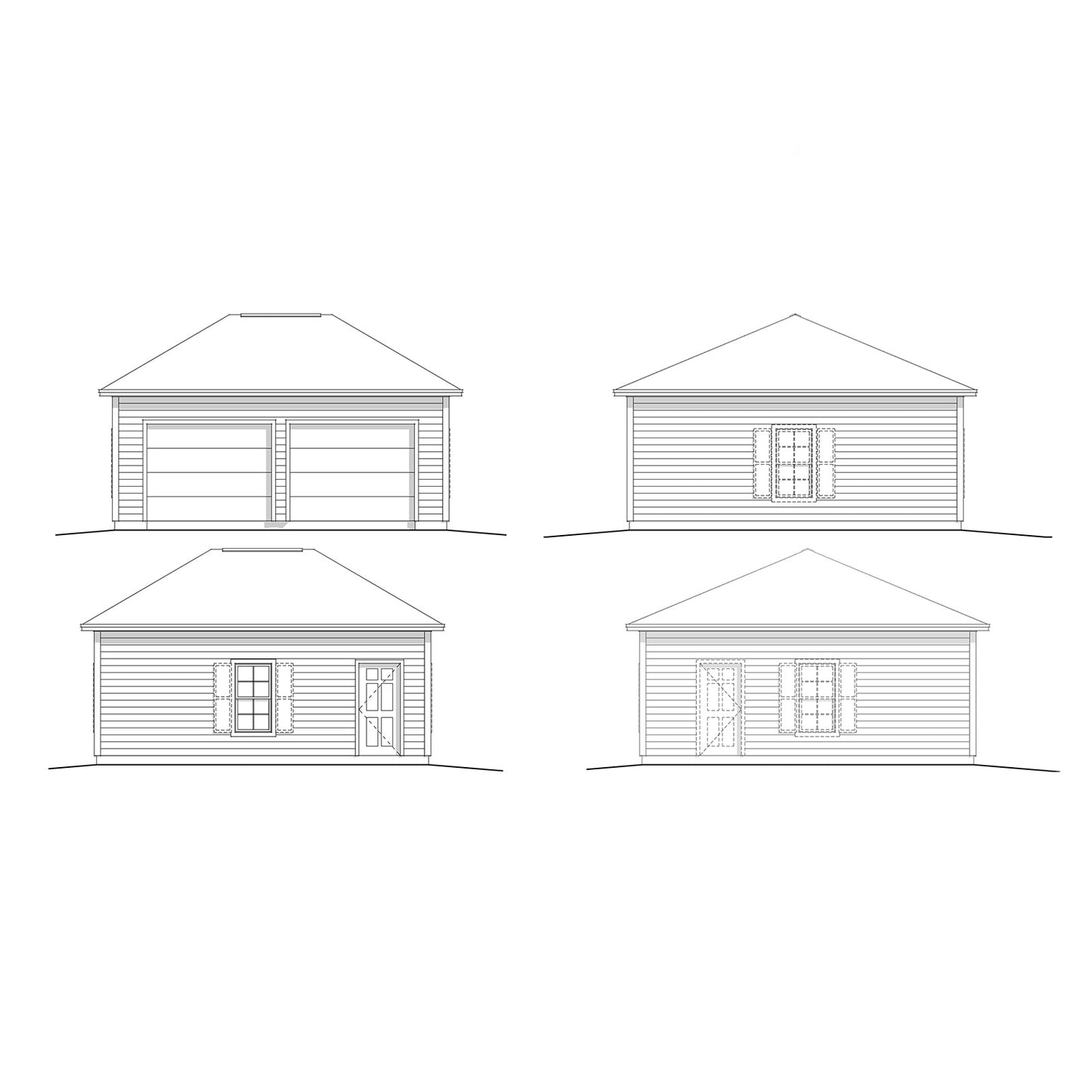

  • Exterior Elevations
  • Sections & Details
  • Electrical Layout
  • PDF and optional CAD Files
  • Roof Plan

All plans are drafted to IRC standards and are permit-ready.

Upgrades wall framing from 2x4 to 2x6 for strength and insulation. Free on RV and Boat garages. Flips the plan horizontally. Ideal for driveway or site layout needs. Mailed copy of the full plan set on 18×24 paper. Includes 5 printed sets, shipped to your address and ready for submittal or builder use.

Add your request below. Customizations typically add 1-2 business days to delivery.

No need to decide right now - you can request a free small change after purchase as well.

Need something more complex?
Request a full custom plan here.

  • Permit‑ready plans designed to IRC standards
  • Instantly delivered PDF so you can start today
  • Free minor revisions if your permit office requests adjustments

  • Includes both monolithic slab and CMU stem wall foundation options.
  • Prepared to current IRC standards. Some jurisdictions may require stamped engineering by others.
  • Free minor drafting revisions are included if your permit office requests adjustments (does not include engineering or stamped drawings).
  • Includes a one-time personal use license. Contact us for multi-use or commercial rights.
  • All sales are final once digital files are sent. Please reach out with any questions before purchasing. We're happy to help.


Why Builders Choose Us

✔ Clear, detailed plans crafted to make permits less of a headache
✔ Easy-to-follow drawings that keep crews moving on the job site
✔ Professional quality that fits real budgets—without cutting corners
Learn More
View full details

PLAN AT A GLANCE

2

Vehicle Capacity ? Number of vehicles the layout is designed to fit.
Dimensions Icon

24'-0"x24'-0"

Dimensions ? Total garage footprint measured from exterior wall to exterior wall.
Ceiling Height Icon

9'-0"

Ceiling Height ? Interior height from the finished slab to the bottom of ceiling framing.
Roof Pitch Icon

5/12 & 7/12

Roof Pitch ? Ratio of roof rise over run. Example: 6/12 means 6 inches of rise for every 12 inches of run.
Door Size Icon

9'x7'

Door Size ? Garage door width by height, measured in feet.
Overall Height Icon

14'-10 3/4"

Overall Height ? Distance from the finished slab to the peak of the roof ridge.
Roof Type Icon

Truss

Roof Type ? Type of roof framing included with this plan, such as truss or rafter system.
Area Icon

576 Sq. Ft.

Area ? Total interior square footage of the garage floor.

Each Plan Includes 5 Interchangeable Garage Door Styles

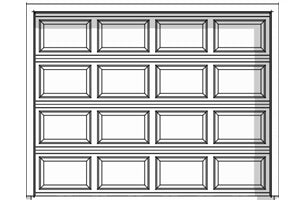

Raised Panel
Raised Panel

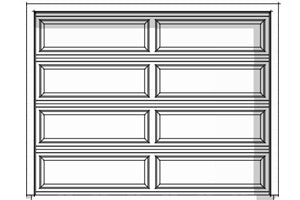

Long Raised Panel
Long Raised Panel

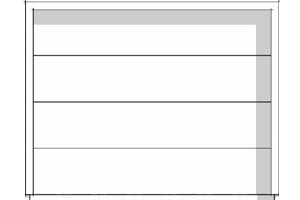

Flush / Modern
Flush / Modern

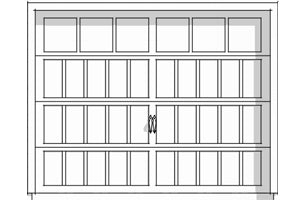

Board and Batten
Board and Batten

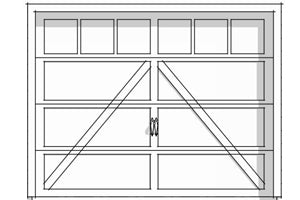

Carriage
Carriage

Actual style selected with builder; availability may vary.

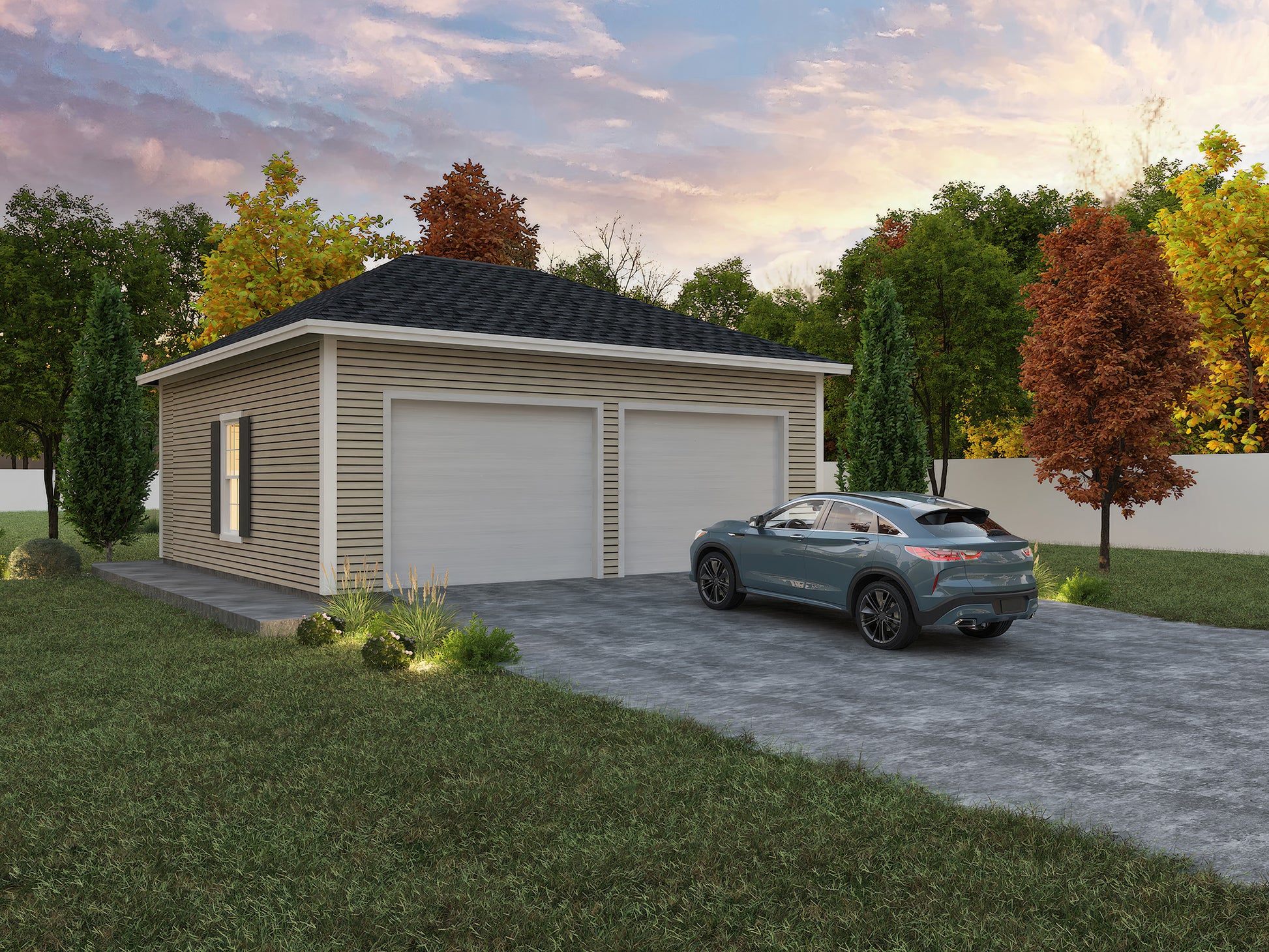

The Eliza adds a refined look to the classic two-car garage.
Its horizontal lap siding and hipped roofline create a polished, architectural feel that pairs easily with both traditional and modern homes. With a 24'x24' footprint, it's spacious enough for two vehicles plus extra room for tools or storage—styled to stand out.

Standard layout highlights:
• 24' wide × 24' deep footprint
• 9' ceiling height
• Two-car capacity with 9'x7' overhead garage doors
• Distinctive hipped roof design
• Side entry door included
• Optional windows and lighting

Want to personalize it? Use the “Need a small change?” dropdown above to request edits to materials, layout, or dimensions before purchase.

FAQ

Each plan includes a complete floor plan, four detailed elevations (front, rear, and both sides), a roof plan, an electrical layout, a materials list, and essential architectural details. Plans are delivered in both PDF (ready for permit submission and printing) and CAD formats (DWG/Revit when purchased as an upgrade), making them easy for contractors and engineers to work with.

Absolutely. Many of our customers request modifications during purchase. Whether you’d like to adjust door and window placements, change dimensions or roof pitch, or update wall and roof materials, we can make it happen. Simply provide the details in the "Need a Small Change?" box above. You’ll still receive plans immediately, and an updated version with your modifications within 1–2 business days.

Our plans are drawn to International Residential Code (IRC) standards, which are widely accepted across the U.S. In most areas, they are permit-ready as provided. If your permit office requests adjustments, we’ll revise the plans for free. If engineering calculations or a licensed stamp are required, those must be provided by a local professional.
View full FAQ
Professionally drafted plans built from 20+ years of residential drafting experience
