The Colley-XL
24'x28' Garage

The Colley-XL (24'x28' Garage)

$309.99
1 3
Includes a full digital plan set with a one-time build license. Editable AutoCAD (.dwg) files for engineers, builders, or custom edits. Includes Revit + 3D model files for advanced architectural workflows.
What’s Included:

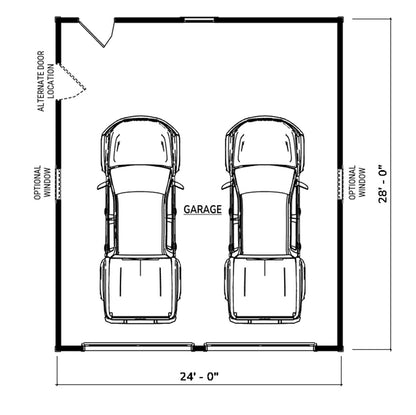

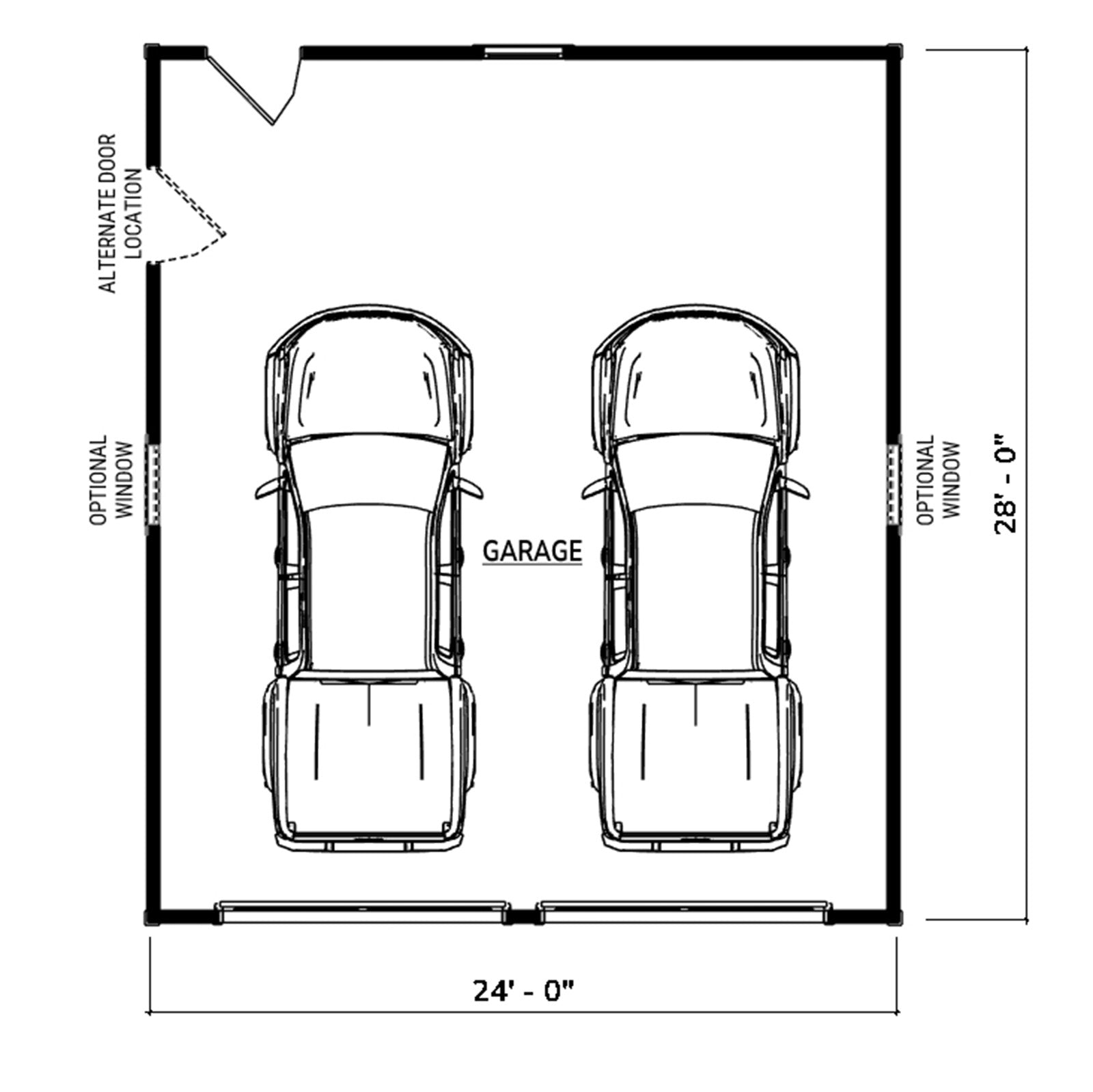

  • Floor plan
  • Materials List

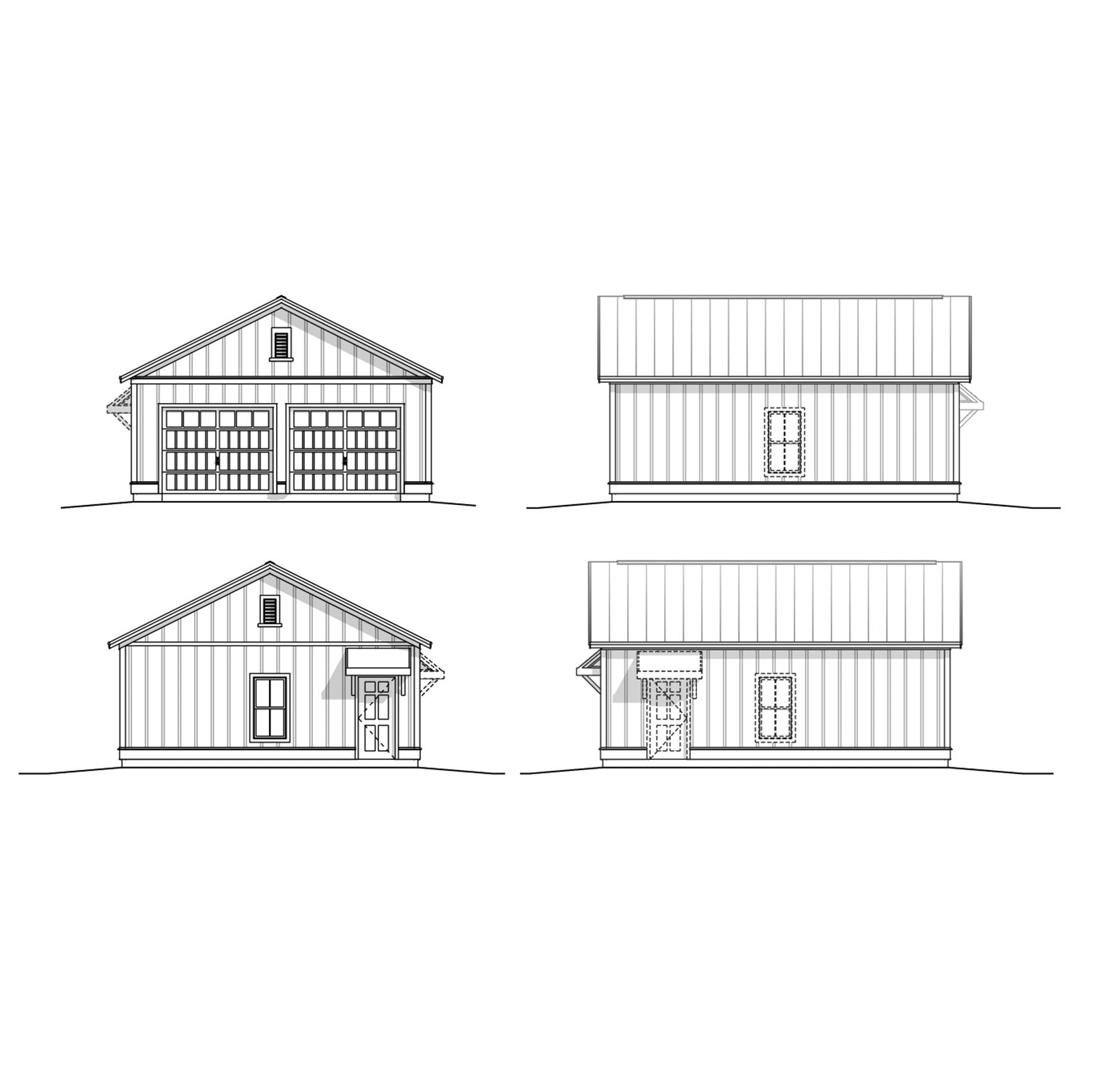

  • Exterior Elevations
  • Sections & Details
  • Electrical Layout
  • PDF and optional CAD Files
  • Roof Plan

All plans are drafted to IRC standards and are permit-ready.

Upgrades wall framing from 2x4 to 2x6 for strength and insulation. Free on RV and Boat garages. Flips the plan horizontally. Ideal for driveway or site layout needs. Mailed copy of the full plan set on 18×24 paper. Includes 5 printed sets, shipped to your address and ready for submittal or builder use.

Add your request below. Customizations typically add 1-2 business days to delivery.

No need to decide right now - you can request a free small change after purchase as well.

Need something more complex?
Request a full custom plan here.

  • Permit‑ready plans designed to IRC standards
  • Instantly delivered PDF so you can start today
  • Free minor revisions if your permit office requests adjustments

  • Includes both monolithic slab and CMU stem wall foundation options.
  • Prepared to current IRC standards. Some jurisdictions may require stamped engineering by others.
  • Free minor drafting revisions are included if your permit office requests adjustments (does not include engineering or stamped drawings).
  • Includes a one-time personal use license. Contact us for multi-use or commercial rights.
  • All sales are final once digital files are sent. Please reach out with any questions before purchasing. We're happy to help.


Why Builders Choose Us

✔ Clear, detailed plans crafted to make permits less of a headache
✔ Easy-to-follow drawings that keep crews moving on the job site
✔ Professional quality that fits real budgets—without cutting corners
Learn More
View full details

PLAN AT A GLANCE

2

Vehicle Capacity ? Number of vehicles the layout is designed to fit.
Dimensions Icon

24'-0"x28'-0"

Dimensions ? Total garage footprint measured from exterior wall to exterior wall.
Ceiling Height Icon

9'-0"

Ceiling Height ? Interior height from the finished slab to the bottom of ceiling framing.
Roof Pitch Icon

6/12

Roof Pitch ? Ratio of roof rise over run. Example: 6/12 means 6 inches of rise for every 12 inches of run.
Door Size Icon

9'x7'

Door Size ? Garage door width by height, measured in feet.
Overall Height Icon

16'-0"

Overall Height ? Distance from the finished slab to the peak of the roof ridge.
Roof Type Icon

Truss

Roof Type ? Type of roof framing included with this plan, such as truss or rafter system.
Area Icon

672 Sq. Ft.

Area ? Total interior square footage of the garage floor.

Each Plan Includes 5 Interchangeable Garage Door Styles

Raised Panel
Raised Panel
Long Raised Panel
Long Raised Panel
Flush / Modern
Flush / Modern
Board and Batten
Board and Batten
Carriage
Carriage

Actual style selected with builder; availability may vary.

The Colley XL expands on the charm of the original Colley with a deeper layout for even more flexibility. Maintaining its farmhouse-inspired look with board and batten siding, a standing seam metal roof, and louvered gable vents, the Colley XL is perfect for those who need extra depth for trucks, SUVs, storage, or a larger workshop area, all while keeping the clean, timeless design.

Standard features include:

•24′ wide × 28′ deep layout
•Added depth for oversized vehicles or expanded workspace
•9′ ceiling height
•(2) 9′×7′ overhead garage doors
•36″ entry door
•Board and batten siding
•Standing seam metal roof
•Louvered gable vents
•Five swappable garage door styles
•Fully dimensioned, permit-ready drawings
