The Norview
20'x35'
Garage
The Norview (20'x35' Garage)
- Permit‑ready plans designed to IRC standards
- Instantly delivered PDF so you can start today
- Free minor revisions if your permit office requests adjustments
- Includes both monolithic slab and CMU stem wall foundation options.
- Prepared to current IRC standards. Some jurisdictions may require stamped engineering by others.
- Free minor drafting revisions are included if your permit office requests adjustments (does not include engineering or stamped drawings).
- Includes a one-time personal use license. Contact us for multi-use or commercial rights.
- All sales are final once digital files are sent. Please reach out with any questions before purchasing. We're happy to help.
Why Builders Choose Us
PLAN AT A GLANCE
UP TO 33'-0"
Maximum Length Boat or RV Maximum length vehicle that can fit inside the garage.
20'-0"x35'-0"
Dimensions Total garage footprint measured from exterior wall to exterior wall.
16'-4 1/2"
Ceiling Height Designed to fit a 14′‑0″ tall garage door with the minimum required clearance for door tracks and structural framing, resulting in a total ceiling height of 16′‑4½″
4/12
Roof Pitch Ratio of roof rise over run. Example: 6/12 means 6 inches of rise for every 12 inches of run.
12'x14'
Door Size Garage door width by height, measured in feet.
22'-11 1/4"
Overall Height Distance from the finished slab to the peak of the roof ridge.
Truss
Roof Type Type of roof framing included with this plan, such as truss or rafter system.
700 Sq. Ft.
Area Total interior square footage of the garage floor.
Each Plan Includes 5 Interchangeable RV/Boat Garage Door Styles
Actual style selected with builder; availability may vary.
The Norview is a tall, flexible garage built for oversized vehicles and gear.
With a 12'x14' overhead door, 16'-4½" ceiling, and 35' depth, it’s ideal for RVs, boats, or trailers—plus room to spare. The clean board-and-batten siding and low-slope roof give it a simple, modern profile that works well in residential or rural settings.
Standard layout highlights:

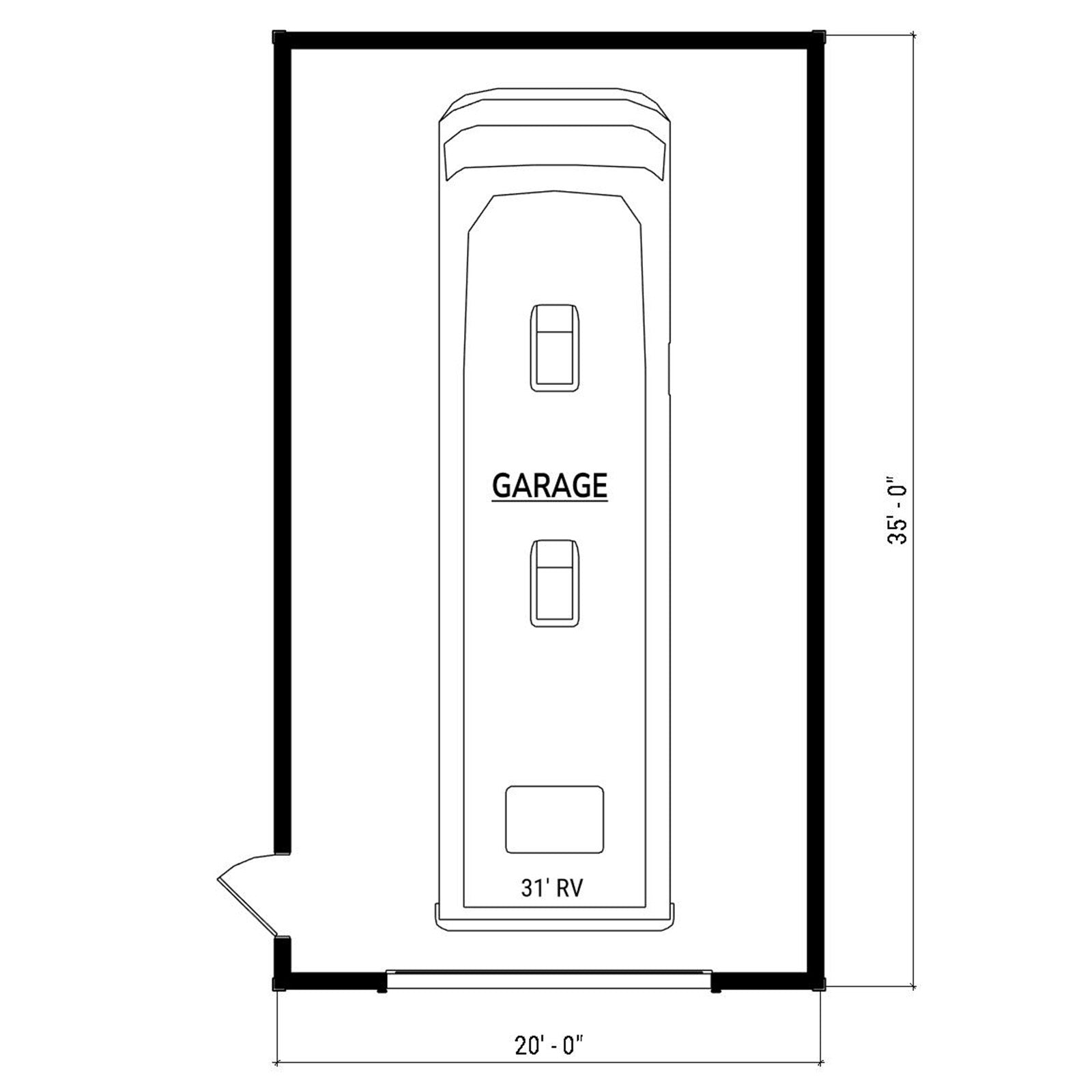

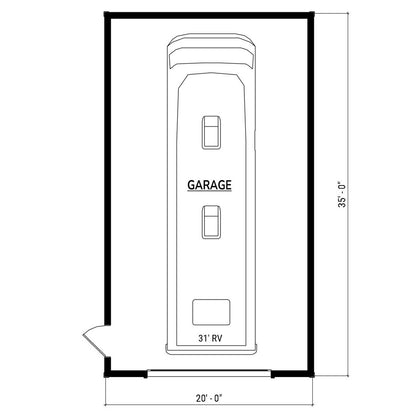

• 20' wide × 35' deep footprint
• 16'-4½" ceiling height
• One 12'x14' overhead garage door
• Fits vehicles up to 13' tall and 30' long
• Side entry door included

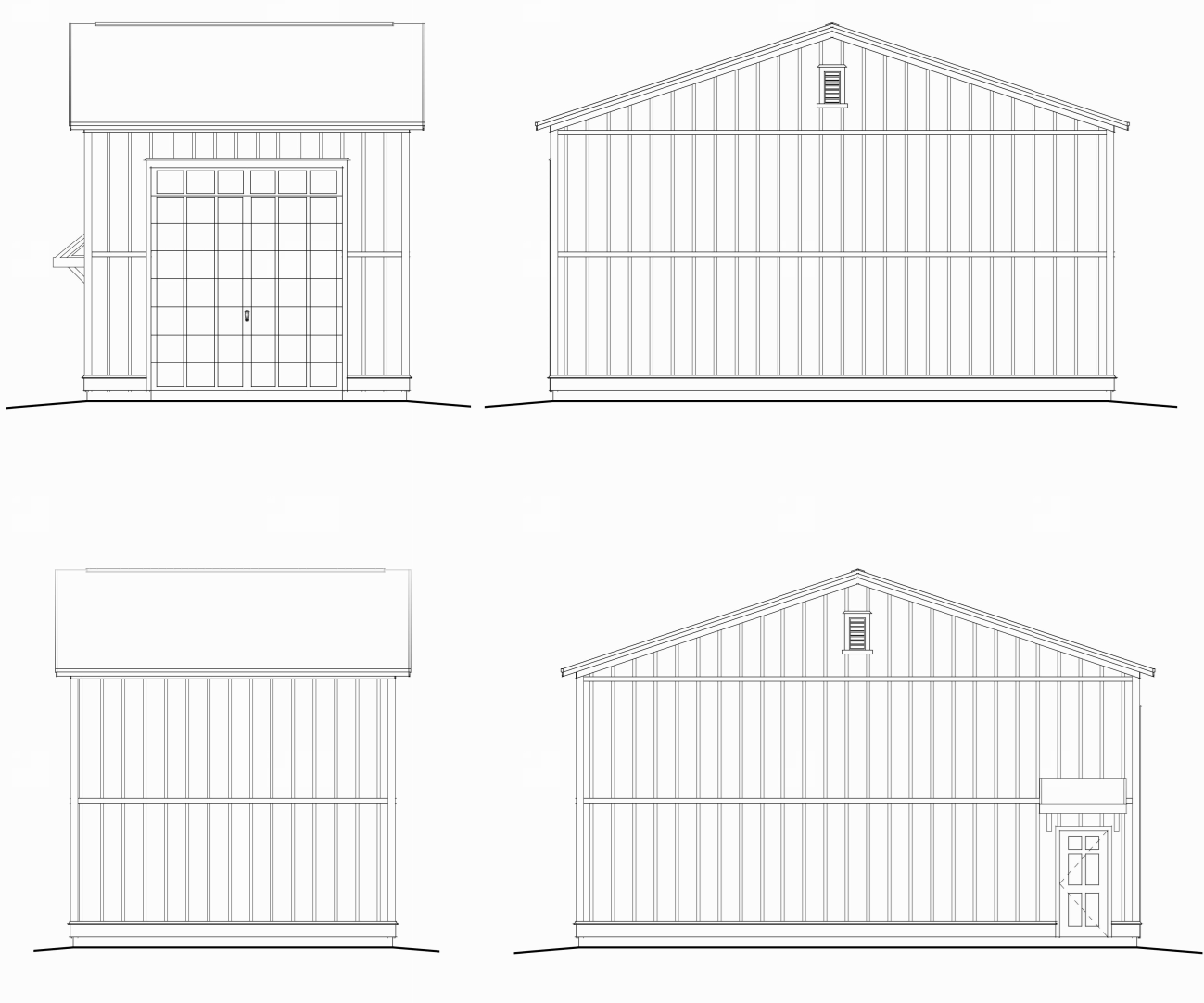

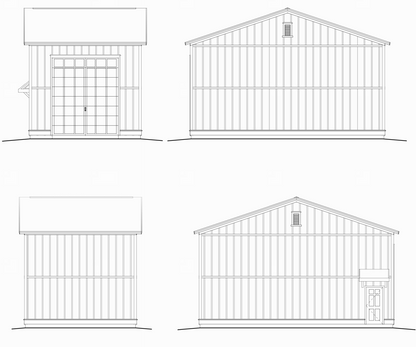

• Board-and-batten siding with architectural shingle roof
• Two gable-mounted louvered vents
Need a tweak? Use the “Need a small change?” dropdown above to request layout edits, material changes, or roof adjustments before purchase.
Engineering Required for Lateral Bracing:
This RV garage includes 16’ tall walls and large overhead door openings, which exceed the IRC’s prescriptive limits for lateral bracing. While the architectural plans are permit-ready, local building codes will require a licensed structural engineer to design and verify all bracing and hold-downs based on your site’s wind, seismic, and exposure category. These structural elements are not included in the plan set and must be completed locally.
